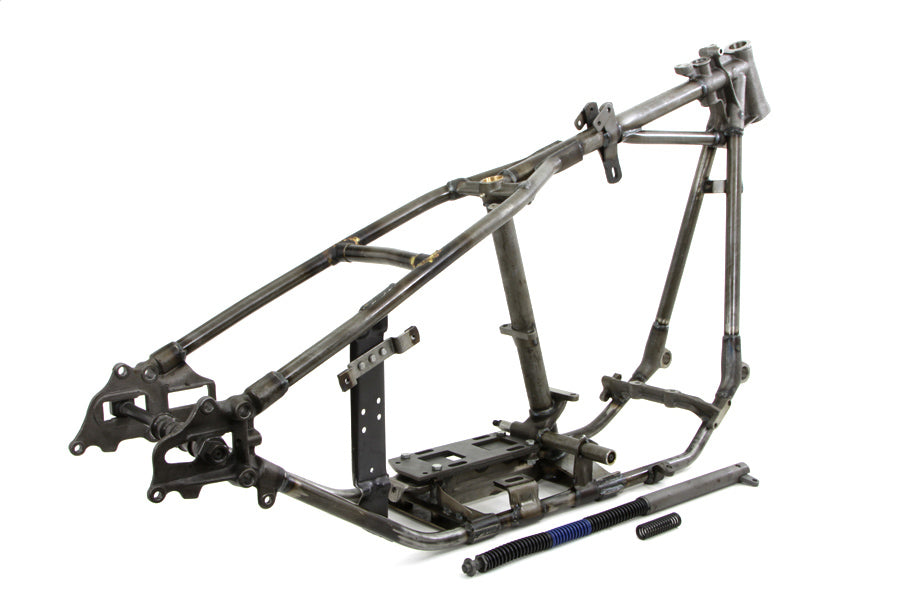

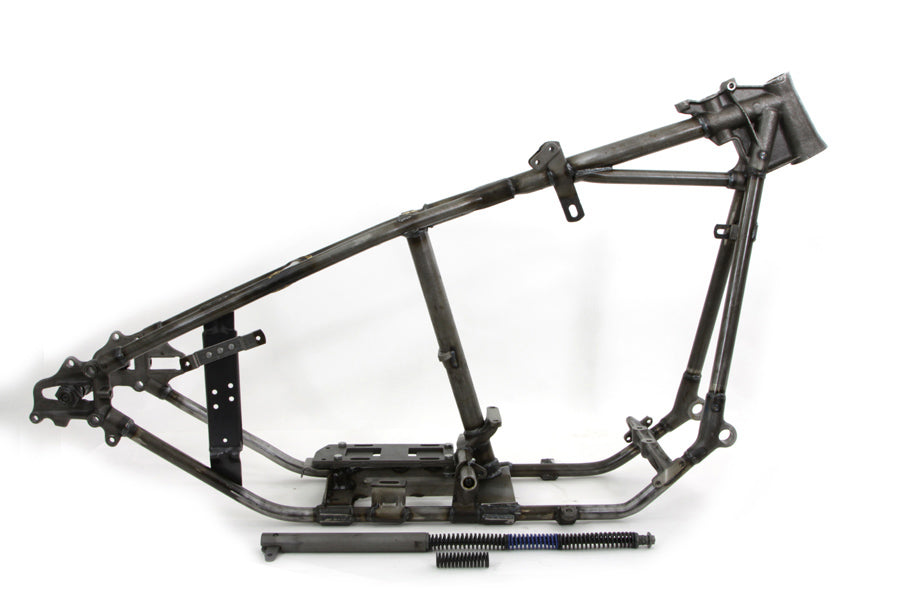

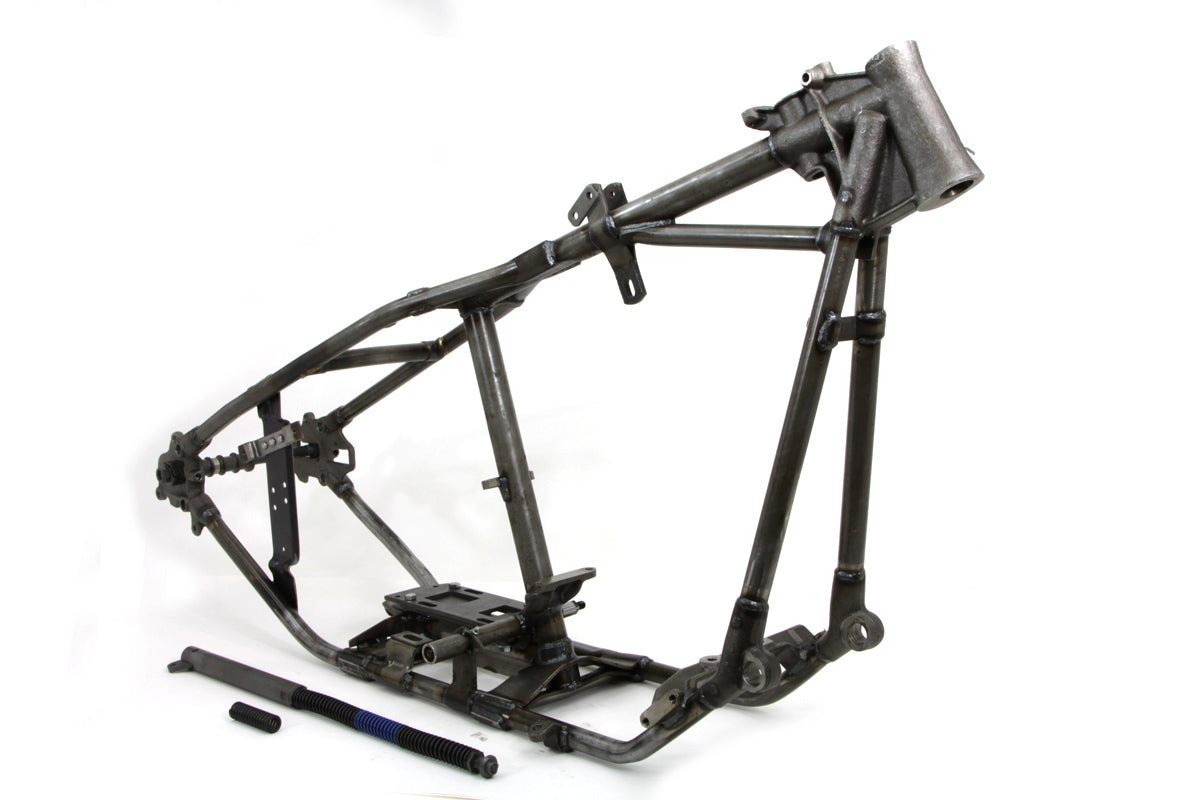

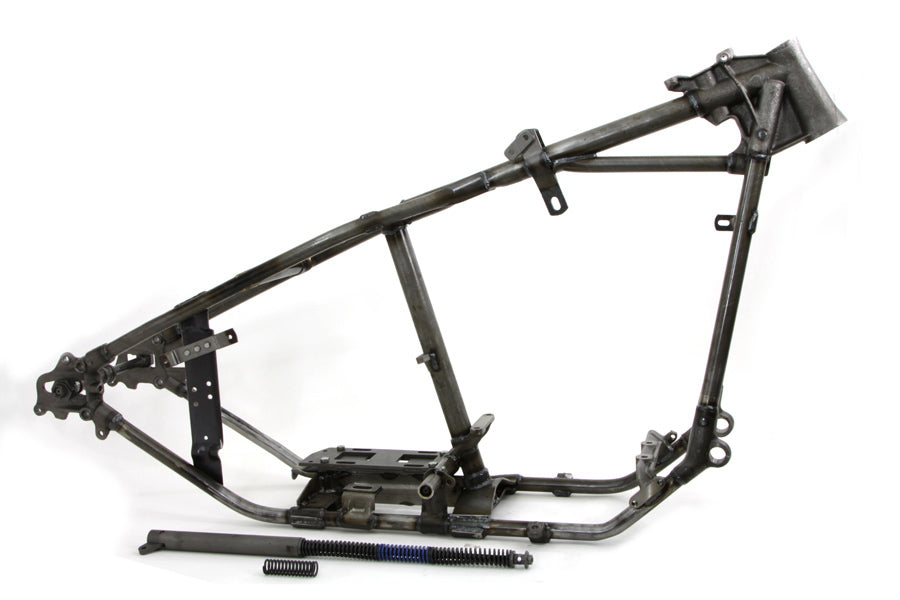

Replica Knucklehead 30° Rake Frame

Knucklehead frame is an authentic reproduction of the factory style bull neck frames, featuring 13 brazed joints.
Forged parts included in the construction are the neck, front and rear motor mounts, side car loops, and rear axle plates. The 30° neck angle will accept offset spring forks. Top cross member across rear legs is brazed as on original Knucklehead frames. Seat post is included. Seat post bushing, mechanical brake cross shaft bushings, correct tool box mount, and grease fittings are installed. Manufacturer's Statement of Origin is supplied. *NOTE: Frame joints are argon welded together. *NOTE: Mount seat "T" to frame before installing gas tanks. Place 6320 washer between the tank and the frame tab before mounting. **NOTE: Seat post and cross shaft bushings may require further reaming for proper fit. *NOTE: There are no serial numbers stamped on the replica frame. V-Twin MFG supplies a Bill of Sale only, referencing the part number.
